Air Suspension Helper Kit - Coil (High Pressure)
Air Suspension Helper Kit - Coil (High Pressure)
Couldn't load pickup availability

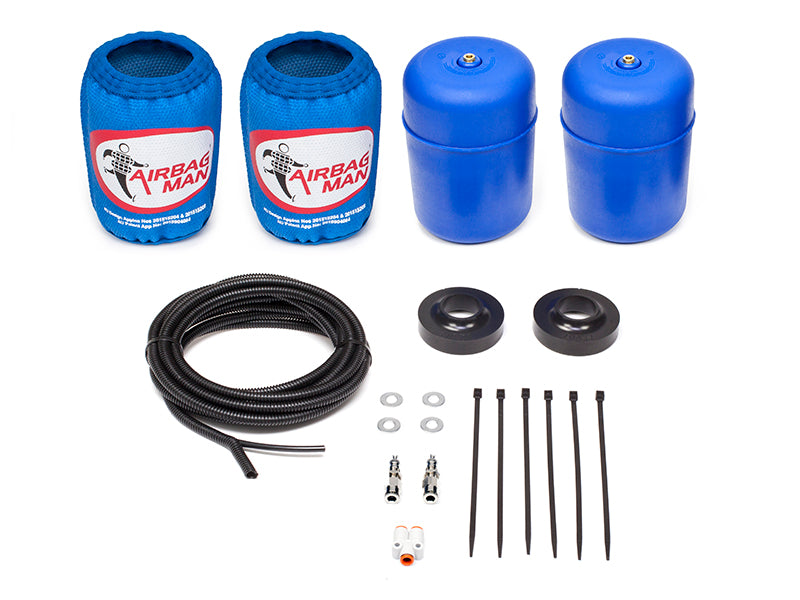

Airbag Man air suspension kits provide the perfect levelling solution for towing or carrying a load with your 4WD, SUV or utility vehicle.
This High-Pressure kit is for heavy towing and/or vehicles being loaded to maximum allowable weights.
Usage
These air suspension kits are designed to fit inside the existing coil springs to provide front to back and side to side levelling control to a vehicle when towing or carrying uneven loads.
This enables you to ‘level up’ once the load has been added by simple inflation and deflation through the inflation valve facility that is supplied with the Airbag Man air suspension kits. (Same concept as inflating and deflating your tyres via the tyre valve).
Key Features
- Designed for heavy towing application and/or vehicle load to max allowable weights
- Utilises heavy duty Firestone airbags
- Made of durable polyurethane, providing years of comfort & stability to a vehicle
- Designed & manufactured by Airbag Man in Australia, with all fittings and components to suit each individual application
- Everything you need in one box. Full instructions included.
- 24-month warranty
Benefits
- Excellent ride quality
- Eliminates spring sag
- Safer load carrying
- Reduce vehicle maintenance costs
- Decreased tyre wear
- More even brake wear
- Improved steering and handling
- Headlights point in the right direction
Fitment
LLVTA Certification is required on all airbag assist product installations in New Zealand.
Check if standard height or lowered, see notes to check
- Rear Height Measurement 390-420mm, see Fitment note for more information
- To check height measure from hub centre to straight up to wheel arch, then choose the matching Kit - jack car up before measuring if it is lower than desired, for more information contact Airbag Man.
- Requires modification to spring seats to fit Kit
- Fitment time - 90 minutes
Pressure & Heights
- Min pressure: 5PSI
- Max pressure: 40PSI
Application
This kit suits the following vehicles:
- CHEVROLETÂ LUMINA VT & VX Sedan 97-02Â Standard Height
- HOLDENÂ ADVENTRA VY & VZ 03-07Â Standard Height
- HOLDENÂ CALAIS VP, VR & VS 91-97Â Standard Height
- HOLDENÂ CALAIS VT 97-00Â Standard Height
- HOLDENÂ CALAIS VX & VY 00-04Â Standard Height
- HOLDENÂ CALAIS VZ 04-06Â Standard Height
- HOLDENÂ CAPRICE VQ, VR, VS, WH, WK, WL 90-Jul.06Â Standard Height
- HOLDENÂ COMMODORE VP, VR, VS Sedan & Wagon 91-Sep.07Â Standard Height
- HOLDENÂ COMMODORE VT 97-02Â Standard Height
- HOLDENÂ COMMODORE VU Ute 00-02Â Standard Height
- HOLDENÂ COMMODORE VX 00-02Â Standard Height
- HOLDENÂ COMMODORE VY 02-04Â Standard Height
- HOLDENÂ COMMODORE VZ 04-07Â Standard Height
- HSVÂ AVALANCHE Wagon VY & VZ 03-05Â Standard Height
- HSVÂ CLUBSPORT VP, VR, VS Sedan & Wagon 91-Sep.07Â Standard Height
- HSVÂ CLUBSPORT VT 97-00Â Standard Height
- HSVÂ CLUBSPORT VX, VY, WH, WK & WL 99-06Â Standard Height
- HSVÂ CLUBSPORT VZ 04-Sep.07Â Standard Height
- HSVÂ COUPE 4 VZ Jul.04-Apr.06Â Standard Height
- HSVÂ GRANGE VP, VR & VS Sedan & Wagon IRS 92-Sep.97Â Standard Height
- HSVÂ MALOO VU Ute 01-02Â Standard Height
- TOYOTAÂ LEXCEN VN, VP, VR, VS Sedan & Wagon 89-97Â Standard Height
